6-thioguanine inhibits EV71 replication by reducing BIRC3-mediated autophagy

BMC Microbiology volume 25, Article number: 53 (2025) Cite this article

Abstract

Background

Enterovirus 71 (EV71) is one of the major causative agents of hand, foot, and mouth disease (HFMD), and can cause severe cerebral complications and even fatality in children younger than 5 years old. However, there is no specific medication for EV71 infection in clinical practice. Our previous studies had identified the 6-thioguanine (6-TG), an FDA-approved anticancer drug, as a potential antiviral agent, but its anti-EV71 activity is largely unknown, therefore, we aim to explore the antiviral effect of 6-TG on EV71.

Results

6-TG significantly suppressed EV71 mRNA level, VP1 protein expression, and viral progeny production in HT-29 cells. In EV71-infected HT-29 cells, the 50% cytotoxicity concentration of 6-TG (CC50) was > 2000 µM and the 50% inhibitory concentration of 6-TG against EV71 (IC50) was 0.9302 µM. Interestingly, the selectivity index (SI) value of 6-TG against EV71 was > 2150.1, which was higher than the SI value (> 66.7) of ribavirin. Mechanistically, 6-TG treatment reduced the expression of baculoviral IAP repeat containing 3 (BIRC3), and further inhibited EV71 replication by attenuating BIRC3-mediated the complete autophagy.

Conclusions

6-TG exerted a significant inhibitory effect on EV71 infection in vitro and prevented EV71-induced the complete autophagy by decreasing BIRC3 expression. Our work provided a basis for the further development of 6-TG as a therapy for EV71-associated HFMD.

Peer Review reports

Background

Hand, foot and mouth disease (HFMD) has become a seasonal infectious disease among children (under 5 years old) in the summer and fall in the Asia-Pacific region [1, 2]. Enterovirus 71 (EV71), a non-enveloped, positive-sense, single-stranded RNA virus in the family Picornaviridae, is the major causative agent of HFMD [3]. HFMD cases often present symptoms of small red herpes on the hands, foot and mouth. Though HFMD is mostly self-limiting, a small proportion of cases even develop severe complications such as acute encephalitis, acute flaccid paralysis, pulmonary edema, cardiorespiratory complication, and death [4]. Although inactivated vaccines have been licensed in China with a high efficacy (90–97.4%) against EV71–associated HFMD [5,6,7], they offered the limited protection against the other genotypes of EV71 due to the fact that vaccines were mostly developed based on a single serotype strain C4 [8, 9]. A therapeutic drug for EV71 is not yet available, therefore, it is necessary to investigate the potential agents with anti-EV71 activity.

6-thioguanine (6-TG), a thiopurine drug, was approved by US Food and Drug Administration (FDA) for the treatment of childhood leukemia in 1950s [10]. Nowadays, 6-TG was more widely used in the treatment of chronic inflammatory diseases including inflammatory bowel disease (IBD) and psoriasis [11]. In addition to the anti-cancer and anti-inflammatory effect, 6-TG also exhibited antiviral activities against the severe acute respiratory syndrome coronavirus 2 (SARS-COV-2) and influenza A virus [12, 13]. Moreover, our previous studies have reported that 6-TG inhibited the severe fever with thrombocytopenia syndrome virus (SFTSV) and Herpes Simples Virus 1 (HSV-1) infection [14, 15]. However, the roles of 6-TG on EV71 infection are not fully understood.

Autophagy is an essential pathway to maintain cellular homeostasis by constituting the catabolic process of misfold proteins, degradation of damaged organelle, and defense against harmful microbes [16]. The process of autophagy begins with the formation of crescent-shaped membrane structures known as phagophore, which expands to form a closed double-membrane vesicle with the transform of LC3 I (MAP1LC3B, microtubule associated protein 1 light chain 3 beta) to the lipoylated LC3 II, called autophagosome. The autophagosome then fuses with a lysosome, and the cargoes in the autophagosome are digested by lysosomal enzymes for recycling [17]. Many viruses including EV71 induce autophagy with observed GFP-LC3 puncta and increased lipid-bound LC3 II level in vivo and in vitro, and EV71 might hijack the autophagosome membranes as the replication site or hijack the secretion autophagy pathway to promote the maturation and egress of virus particles [18,19,20]. And inhibition of autophagy contributed to the cellular anti-EV71 effect [21]. Thus, the effect of 6-TG in autophagy upon EV71 infection and the host factor participating in EV71 associated autophagy is investigated in this study.

Here, we found that 6-TG inhibited EV71 replication in vitro. Mechanically, 6-TG inhibited EV71 infection by attenuating the baculoviral IAP repeat containing 3 (BIRC3, also known as cIAP2) mediated complete autophagy. Overall, our study suggests that the BIRC3 antagonist 6-TG may be a plausible candidate for the treatment of EV71-assocaited HFMD.

Methods

Cells, viruses, and compounds

HT-29 (human colorectal cell lines), HeLa (human epithelial carcinoma cell lines) and Vero (African green monkey kidney epithelial cell lines) cells were grown in Dulbecco’s modified Eagle’s medium (DMEM; HyClone, Logan, UT, USA) supplemented with 10% or 2% fetal bovine serum (FBS; Gibco, Carlsbad, CA, USA) at 37 °C under a 5% CO2 atmosphere.

EV71-BrCr strain was obtained from Professor Bin Wu, Jiangsu Provincial Centers of Disease Control. EV71 was propagated on Vero cells.

6-Thioguanine (CAS No.154-42-7) was purchased from Selleck Chemicals (Houston, USA), and dissolved in DMSO (final concentration: 40 mM). Ribavirin (CAS No.36791-04-5) and rapamycin (CAS No.53123-88-9) were purchased from MedChem Express (New Jersey, USA), and dissolved in DMSO (final concentration: 10 mM).

siRNAs, plasmids and antibodies

The siBIRC3 targeting BIRC3 (5’-GCCUUGAUGAGAAGUUCCUTT-3’) and the negative-control siRNA (siNC) were purchased from RIBOBIO (Guangzhou, China). The plasmid expressing BIRC3 with flag tag (pBIRC3) and the control plasmid (pVector) were purchased from Miaolingbio (Wuhan, China). The plasmids expressing EV71 nonstructural proteins 2A protease (2Apro), 2B, 3AB, 3C and 3D were donated by Professor Jianguo Wu from Jinan University. The plasmid expressing EV71 nonstructural protein 2C was prepared by our laboratory [22]. The siRNAs and plasmids were transfected into HeLa cells or HT-29 cells using Lipofectamine 3000 Transfection Kit (Life Technologies, Carlsbad, USA) according to the manufacturer’s instructions.

Antibodies used in this study were as follows:

Product name

Company

Product number

Mouse anti-VP1 antibody

Mouse anti-β-actin antibody

Abcam (Cambridge, UK)

Santa Cruz Biotechnology (Dallas, USA)

ab36367

sc-47778

Rabbit anti-LC3 antibody

Rabbit anti-P62/SQSTM1 antibody

Sigma-Aldrich (St.Louis, USA)

Proteintech (Wuhan, China)

L7543

18420-1-AP

Rabbit anti-BIRC3 antibody

Mouse anti-Flag tag antibody

ABclonal (Wuhan, China)

Servicebio (Wuhan, China)

A0833

GB15938-100

Mouse anti-GFP tag antibody

Proteintech (Wuhan, China)

16825-1-AP

Mouse anti-HA tag antibody

Rabbit anti-eIf4G antibody

Proteintech (Wuhan, China)

Cell Signaling Technology (Danvers, USA)

66006-1-lg

2469

Rabbit anti-GAPDH antibody

Proteintech (Wuhan, China)

10494-1-AP

Cytotoxicity assay

The cytotoxicity of 6-TG or ribavirin was determined by incubating cells with different concentrations of compound for 24 h, and the surviving cells were assayed by CCK8 Cell Counting Kit (Vazyme Biotech, Nanjing, China) as previously described [23]. The 50% cytotoxic concentration (CC50) of 6-TG or ribavirin was calculated based on GraphPad Prism, version 8.0 (GraphPad Software, San Diego, CA, USA).

RNA extraction and quantitative real-time PCR

Total intracellular RNA was extracted using TRIzol reagent (Life Technologies, Carlsbad, USA). Reverse-transcribed cDNA was synthesized using the PrimeScript RT Reagent Kit (TaKaRa, Kyoto, Japan). Quantitative real-time PCR was performed using a standard protocol on an Applied Biosystems 7500 system using SYBR green qPCR Master mix (Vazyme Biotech, Nanjing, China) according to the manufacturer’s instruction. GAPDH was used for normalization of mRNA, and analysis was carried out using the 2-ΔΔCt method. The primers used in this study were as follows:



Forward (5′-3′)

Reverse (5′-3′)

EV71

TAACTGCGGAGCACATACCC

ACGGACACCCAAAGTAGTCG

BIRC3

GCTTTTGCTGTGATGGTGGACTC

CTTGACGGATGAACTCCTGTCC

GAPDH

GAGTCAACGGATTTGGTCGT

CTTGATTTTGGAGGGATCTCGC

Western blot

Cells were collected and lysed using RIPA lysis buffer (Santa Cruz, Dallas, USA). Total protein concentrations were determined using the Bicinchoninic Acid (BCA) Protein Assay Kit (Pierce, Thermo, Massachusetts, USA). Extracted proteins were separated on 10% or 12% SDS-PAGE (BIO-RAD, Hercules, USA) and then transferred onto PVDF membranes (Millipore, Massachusetts, USA). The membranes were blocked for one hour at room temperature and then probed with primary antibodies at an appropriate dilution at 4 °C overnight, followed by incubation with corresponding IRDye 800 goat anti-mouse IgG or IRDye 680 donkey anti-rabbit IgG (LI-COR Bioscience, Lincoln, USA) secondary antibodies. The membranes were scanned by Odyssey Infrared Imaging System (LI-COR Bioscience, Lincoln, USA), and the band intensity of proteins were quantified by ImageJ software.

Virus titers

Vero cells were grown in 96-well plates for 24 h before virus infection. Virus or the collected culture supernatant containing virus was serially diluted in DMEM supplemented with 2% FBS from 10− 2 to 10− 8, and then each diluted sample was added to eight wells in the plate. The plates were then incubated at 37 °C with 5% CO2. The cytopathic effect (CPE) was recorded under the microscope after 3 days. Virus titers were calculated as the 50% tissue culture infectious dose (TCID50) using the Reed–Munch method.

In-cell western assay (ICW assay)

ICW assay was carried out as previously described [24, 25]. Shortly, the cells in 96-well plate were fixed, permeabilized, and blocked with BSA. Then the cells were incubated with EV71 VP1-specific antibody and stained with IRDye 800 goat anti-mouse IgG and nuclear stain DRAQ5 (Thermo, Waltham, USA). Subsequently, the cells were scanned with Odyssey software, and the levels of VP1 protein were quantified and normalized to DRAQ5. The viral inhibition meant the relative levels of VP1 protein and the half-maximal inhibitory concentration (IC50) of 6-TG was calculated using GraphPad Prism as previously described [26].

Time-of-addition assay

HeLa cells were infected with EV71 in 96-wells and then 1 µM 6-TG or DMSO (as a negative control) was added to the cell culture at different time points after virus addition: -2 h, 0 h, 2 h, 4 h, 6 h, 8 h, 12 h and 24 h. At 24 h post infection (hpi), the antiviral activity of 6-TG was determined by ICW assay.

Immunofluorescence assay

Immunofluorescence assay was carried out as previously described [27]. In short, the cells were fixed by 4% paraformaldehyde (Servicebio, Wuhan, China), permeabilized by 0.5% Triton X-100, and followed by blocking with 2% BSA. Then the cells were incubated with primary antibodies at 4 °C for 12 h. Subsequently, the cells were incubated with Alexa Fluro 594-labeled donkey anti-rabbit IgG or Alexa Fluro 488-labeled goat anti-mouse IgG (Thermo, Waltham, USA) for about 1 h, and the cell nucleus were stained by DAPI. The cells were examined under and imaged by Olympus Fluoview FV3000 as previously described [28].

Statistical analysis

The data was expressed as the mean ± standard error of the mean (SEM) of three independent experiments. The levels of significance for the different experimental groups were analyzed using Student t-tests and one-way ANOVA followed by a SNK-q test. P-value < 0.05 was considered statistically significant (ns, no significant, *P < 0.05, **P < 0.01, ***P < 0.001, and ****P < 0.0001).

Results

6-TG inhibits EV71 infection

6-TG, also named 2-Amino-6-purinethiol, is a synthetic guanosine analog with the molecular structure as shown in Fig. 1A. To determine the cytotoxic effects of 6-TG, HT-29 cells were treated with 6-TG at increasing concentrations from 1 to 2000 µM for 24 h. The 50% cytotoxicity concentration of 6-TG (CC50) to HT-29 cells was greater than 2000 µM (Fig. 1B). Subsequently, EV71-infected HT-29 cells were treated with 6-TG from 0 to 3 µM, and we observed that 6-TG significantly reduced EV71 mRNA levels (Fig. 1C). Furthermore, VP1 protein of EV71, the major contributor to EV71 pathogenesis [29, 30], was significantly decreased in the presence of 6-TG at 1 or 3 µM, respectively (Fig. 1D). As expected, 6-TG also significantly reduced the extracellular EV71 titers as compared to the untreated group (Fig. 1E). Taken together, these results indicated that 6-TG effectively suppressed EV71 replication and proliferation in vitro.

Fig. 1
figure 1

6-TG inhibited EV71 infection. (A) The molecular structure of 6-TG was shown. (B) HT-29 cells were treated with serial concentrations (0-2000 µM) of 6-TG for 24 h, then the cell viability of the cells was determined by CCK8 assay. The viability of non-treated cells was considered as a blank control. The 6-TG-treated cell viability was determined as a percentage of the blank control. CC50 is 50% cytotoxicity concentration of 6-TG in HT-29 cells. (C) HT-29 cells were infected with EV71 at an MOI of 3 in the presence of 6-TG (0, 1, 3 µM). After 24 h, EV71 mRNA was quantified via quantitative real-time PCR, normalized against GAPDH. The EV71 VP1 protein expression was quantified via western blot analysis, normalized against β-actin. The intensity of western blot bands signals was quantified by ImageJ software (D). (E) HT-29 cells were infected with EV71 at an MOI of 3 for 4 h, then the cells were washed with PBS and incubated with 3 µM 6-TG. After 24 h, the culture supernatant was collected and added to Vero cells, the viral titers were calculated as the TCID50 after 72 h incubation. (F) HT-29 cells were infected with EV71 at an MOI of 3 in the presence of 6-TG at different concentrations (0, 0.5, 1, 1.5, 2, 2.5, 3 µM). After 24 h, the intracellular EV71 VP1 (green) was examined via ICW assay and normalized by DRAQ5 (red). (G) HT-29 cells were infected with EV71 at an MOI of 3 in the presence of 6-TG at different concentrations (0, 0.5, 1, 1.5, 2, 2.5, 3, 10, 50 µM). After 24 h, the intracellular EV71 VP1 was examined via ICW assay and normalized by DRAQ5. The percent of EV71 inhibition was analyzed by Odyssey software. The intracellular EV71 VP1 of EV71-infected cells without 6-TG-treatment was considered as a negative control. IC50 is 50% inhibitory concentration of 6-TG against EV71. (H) HT-29 cells were infected with EV71 at an MOI of 3 in the presence of ribavirin at different concentrations (0, 0.1, 0.5, 1, 3, 5, 10, 30 µM). After 24 h, the intracellular EV71 VP1 (green) was examined via ICW assay and normalized by DRAQ5 (red). The percent of EV71 inhibition was analyzed by Odyssey software, and the intracellular EV71 VP1 of EV71-infected cells without ribavirin treatment were considered as a negative control. IC50 is 50% inhibitory concentration of ribavirin against EV71 (J). (I) HT-29 cells were treated with serial concentrations (0-2000 µM) of ribavirin for 24 h, then cell viability of the cells was determined by CCK8 assay. The viability of non-treated cells was considered as a blank control. The ribavirin-treated cell viability was determined as a percentage of the blank control. (K) The IC50, CC50, and SI index of 6-TG or ribavirin against EV71 in HT-29 cells. SI is selectivity index of compounds, and was defined as the ratio of CC50 to IC50 (CC50/IC50). Data were pooled from four (B and I) or three (C, D, E, G and J) independent experiments, and were shown as the mean ± SEM (**P < 0.01, ***P < 0.001, ****P < 0.0001)

Full size image

Next, the 50% inhibitory concentration (IC50) of 6-TG against EV71 was determined by ICW assay in HT-29 cells, and EV71 VP1 protein was significantly reduced at an IC50 of 0.9302 µM (Fig. 1F-G), which was significantly lower than the cytotoxic concentration. Ribavirin was previously reported to exhibit an anti-EV71 activity [31], therefore, ribavirin was used as a positive control to assess the anti-EV71 activity of 6-TG in this study. The IC50 of ribavirin was over 30 µM with the CC50 > 2000 µM (Fig. 1H-J). The selectivity index (SI, CC50/IC50) of 6-TG was > 2150.1, higher than ribavirin (> 66.7) (Fig. 1K), suggesting that 6-TG is a more potent drug for inhibiting EV71 than ribavirin.

6-TG inhibits EV71 replication at early stages of viral infection

HeLa cells were widely used to explore the antiviral effects of 6-TG or the EV71 replication process [14, 15, 27]. We found that 6-TG at 1 µM, much lower than CC50 at 22.42 µM, showed 88% inhibitory effect of EV71 (Fig. 2A-B). To determine at which stage of EV71 replication the anti-EV71 activity of 6-TG occurred, time-of-addition experiment was further performed in HeLa cells. 1 µM 6-TG was added to HeLa cells at different time points (-2, 0, 2, 4, 6, 8, 12 and 24 h) during infection, and the EV71 VP1 expression relative to the DMSO-treated cells was measured using ICW assay at 24 hpi (hours post EV71 infection) (Fig. 2C). At present, 6-TG inhibited almost 100% of EV71 VP1 protein at -2 hpi, > 90% at 2 hpi, and close to 50% at 12 hpi (Fig. 2D-E). These data indicated that 6-TG likely acted on the early stages of EV71 infection.

Fig. 2
figure 2

6-TG inhibited EV71 replication at early stages of viral infection. (A) HeLa cells were treated with serial concentrations (0–50 µM) of 6-TG for 24 h, then the cell viability of the cells was determined by CCK8 assay. The viability of non-treated cells was considered as a blank control. The 6-TG-treated cell viability was determined as a percentage of the blank control. CC50 is 50% cytotoxicity concentration of 6-TG in HeLa cells. (B) HeLa cells were infected with EV71 at an MOI of 1 in the presence of 6-TG at different concentrations (0, 0.001, 0.01, 0.1, 1, 5 µM). After 24 h, the intracellular EV71 VP1 (green) was examined via ICW assay and normalized by DRAQ5 (red). The percent of EV71 inhibition was analyzed by Odyssey software, and the intracellular EV71 VP1 of EV71-infected cells without 6-TG treatment were considered as a negative control. (C) The design of action mode of time-of-addition assay. HeLa cells were infected with EV71 (MOI = 0.5) for 24 h, and 1 µM of 6-TG or DMSO were added to cells at -2, 0, 2, 4, 6, 8, 12 and 24 h of EV71 infection. After 24 h, the intracellular EV71 VP1 (green) was examined via ICW assay (D). The percent of inhibition of EV71 was analyzed by Odyssey software, and the intracellular EV71 VP1 of EV71-infected cells with DMSO-treatment was considered as control (E). −2 –0 h: viral pre-infection period; 0–2 h: viral adsorption and entry period; 2–24 h: the period of virus proliferation in the cells. 6-TG inhibited almost 100% of EV71 VP1 protein at -2 hpi, > 90% at 2 hpi, and close to 50% at 12 hpi. Data were pooled from four (A) or three (E) independent experiments, and were shown as the mean ± SEM

Full size image

BIRC3 is a key factor for 6-TG inhibiting EV71 replication

Previous studies have considered Ras-related C3 botulinum toxin substrate 1 (Rac1) to be one of the main targets of 6-TG [32], and we previously found that 6-TG inhibited SFTSV and HSV-1 replication via suppressing the expression and/or activity of Rac1 [14, 15]. Therefore, we initially investigated the role of Rac1 in 6-TG-induced EV71 inhibition, and found that NSC23766, a Rac1-specific inhibitor, had no effect on EV71 infection (Fig. 3A), which implies that the mechanism by which 6-TG inhibits EV71 replication is distinct from that of SFTSV or HSV-1. Subsequently, we reanalyzed two related RNA-sequencing datasets: one reported in our previous study (Control vs. 6-TG without viral infection) [15], and the other available in the GEO database (Mock vs. EV71 without 6-TG treatment, GSE:123550). We identified 14 genes appeared to overlap between the two datasets (Fig. 3B), and the BIRC3 was downregulated by 6-TG treatment and upregulated by EV71 infection, implying that BIRC3 might play a key role in 6-TG against EV71 infection (Fig. 3C). Here, both mRNA and protein levels of BIRC3 were decreased in 6-TG treated HeLa cells and HT-29 cells (Fig. 3D-E and Fig. S1A-B), indicating that BIRC3 might be another target of 6-TG. Moreover, EV71 infection elevated both the mRNA and protein levels of BIRC3 in HeLa cells and HT-29 cells (Fig. 3F-H and Fig. S1C-E), indicating that BIRC3 may be involved in EV71 infection. Importantly, the inhibition of EV71 replication by 6-TG treatment was accompanied by a decrease in BIRC3 (Fig. 3I-K). Overall, these results suggested that BIRC3 might be a key factor for 6-TG suppressing EV71 replication.

Fig. 3
figure 3

BIRC3 was the key regulator of 6-TG against EV71 infection. (A) HeLa cells were infected with EV71 at an MOI of 1 in the presence of NSC23766 at different concentrations (0, 5, 10, 30, 50, 100 µM). After 24 h, the intracellular EV71 VP1 (green) was examined via ICW assay and normalized by DRAQ5 (red). The percent of EV71 inhibition was analyzed by Odyssey software, and the intracellular EV71 VP1 of EV71-infected cells without NSC23766 treatment were considered as a negative control. (B) Identification of 14 common differential expressed genes (DEG) from untreated or 6-TG-treated HUVEC database (Control vs. 6-TG) and uninfected or EV71-infected mice database (GSE123550) (Mock vs. EV71) through SangerBox 3.0 online tools. Advanced Pie plot was performed using the OmicStudio tools at https://www.omicstudio.cn/tool. (C) The heatmap of the 14 common DEGs from Control vs. 6-TG group and Mock vs. EV71 group. Advanced Heatmap Plots was performed using the OmicStudio tools at https://www.omicstudio.cn. (D and E) HeLa cells were incubated with 1 or 3 µM 6-TG for 2 h. Then the BIRC3 mRNA was quantified by quantitative real-time PCR, normalized to GAPDH (D). The BIRC3 protein levels were quantified via western blot analysis, normalized against β-actin. The intensity of western blot bands signals was quantified by ImageJ software (E). (F, G and H) HeLa cells were infected with EV71 at an MOI of 0.5 for 24 h, and the EV71 mRNA and BIRC3 mRNA was quantified via quantitative real-time PCR, normalized against GAPDH (F and G). The BIRC3 expression was quantified via western blot analysis, normalized against β-actin. The intensity of western blot bands signals was quantified by ImageJ software (H). (I, J and K) HeLa cells were infected with EV71 at an MOI of 0.5 in the presence of 6-TG at 1 µM. The BIRC3 and EV71 VP1 expression was quantified via western blot analysis, normalized against β-actin. The intensity of BIRC3 was quantified by ImageJ software (I). The EV71 mRNA and BIRC3 mRNA was quantified via quantitative real-time PCR, normalized against GAPDH (J and K). Data were pooled from three (D-K) independent experiments, and were shown as the mean ± SEM (*P < 0.05, **P < 0.01, ***P < 0.001, ****P < 0.0001)

Full size image

6-TG exhibits anti-EV71 effect by downregulating BIRC3

Next, we analyzed the roles of BIRC3 in EV71 replication. BIRC3 was silenced by siBIRC3 #1/2/3 as measured in both mRNA expression (Fig. 4A) and protein levels (Fig. 4B), and siBIRC3 #3 (called siBIRC3 in the following text) exhibited the most pronounced inhibition of BIRC3. Silencing BIRC3 markedly reduced EV71 mRNA (Fig. 4C) and VP1 protein (Fig. 4D) as compared to siNC-transfected HeLa cells. Furthermore, the plasmid expressing BIRC3 (pBIRC3) was also confirmed in both mRNA (Fig. 4E) and protein levels (Fig. 4F), and the overexpressed BIRC3 resulted in increased EV71 mRNA levels, VP1 protein levels and viral titers (Fig. 4G-I) as compared to an empty vector-transfected HeLa cells. Although we failed to knock down BIRC3 in HT-29 cells, we also observed a positive effect of BIRC3 overexpression in HT-29 cells on EV71 replication (Fig. S2A-C). Importantly, we found that BIRC3 overexpression reversed the inhibitory effect of 6-TG on EV71 replication and production (Fig. 4J-L). These results suggested that BIRC3 was required for EV71 replication in vitro, and the anti-EV71 effect of 6-TG was depend on BIRC3.

Fig. 4
figure 4

BIRC3 promoted EV71 replication and reversed the anti-EV71 effect of 6-TG. (A and B) HeLa cells were transfected with three specific siRNAs targeting BIRC3 (siBIRC3 #1, siBIRC3 #2, siBIRC3 #3) or control siRNA (siNC) for 30 h. The cells were harvested and the BIRC3 RNA levels were quantified via quantitative real-time PCR, normalized against GAPDH (A), the BIRC3 protein levels were evaluated by western blot assay, normalized to β-actin (B). (C and D) HeLa cells were transfected with siBIRC3 or siNC for 30 h, and then infected with EV71 at an MOI of 0.5 for 24 h. The cells were harvested and the EV71 RNA levels were quantified via quantitative real-time PCR, normalized against GAPDH (C). The EV71 VP1 protein expression was evaluated by western blot assay, normalized to β-actin. The intensity of western blot bands signals was quantified by ImageJ software (D). (E and F) HeLa cells were transfected with 1 µg plasmid encoding BIRC3 (pBIRC3) or control plasmid (pVector). After 30 h, the cells were collected, and the BIRC3 RNA levels were quantified via quantitative real-time PCR, normalized against GAPDH (E), the flag-BIRC3 protein expression was evaluated by western blot assay, normalized to β-actin (F). (G and H) HeLa cells were transfected with 1 µg pBIRC3 or pVector for 30 h, and then infected with EV71 at an MOI of 0.5 for 24 h. The cells were harvested and EV71 RNA levels were quantified via quantitative real-time PCR, normalized against GAPDH (G). The EV71 VP1 protein expression in harvested cells was evaluated by western blot assay, normalized to β-actin. The intensity of western blot bands signals was quantified by ImageJ software (H). (I) HeLa cells were transfected with 1 µg pBIRC3 or pVector for 30 h, and next infected with EV71 at an MOI of 0.5 for 2 h, then the cells were washed with PBS and incubated with clear culture medium. After 24 h, the culture supernatant was collected and added to Vero cells, the viral titers were calculated as the TCID50 after 72 h incubation. (J and K) HeLa cells were transfected with 1 µg pBIRC3 or an empty Vector for 30 h, then the cells were infected with EV71 at an MOI of 0.5 in the presence of 1 µM 6-TG for 24 h. The EV71 RNA levels and the BIRC3 RNA levels in harvested cells were quantified via quantitative real-time PCR, normalized against GAPDH. (L) HeLa cells were transfected with 1 µg pBIRC3 or an empty Vector for 30 h, then the cells were infected with EV71 at an MOI of 0.5 for 2 h. After washing with PBS, the cells were incubated with 1 µM 6-TG for 24 h. The culture supernatant was collected and added to Vero cells, the viral titers were calculated as the TCID50 after 72 h incubation. Data were pooled from three (A, C-E and G-L) or two (B and F) independent experiments, and were shown as the mean ± SEM (*P < 0.05, **P < 0.01, ***P < 0.001, ****P < 0.0001)

Full size image

BIRC3 is necessary for the cleavage function of EV71 2Apro and the expression of EV71 3AB

The nonstructural proteins 2Apro–2C and 3A–3D of EV71 are involved in regulating viral replication [33], and 2Apro exhibits the cysteine protease activity in cleaving the polyprotein into mature proteins of EV71 and cleaving the elongation factor eIF4G to inhibit host cap-dependent protein synthesis. Therefore, previous studies usually used the cleaved eIF4G/β-actin to present the cleavage function of 2Apro [34, 35]. Then we investigated the effect of BIRC3 on nonstructural protein function or expression by transfecting plasmids GFP-2Apro/2B/3AB/3C/3D and HA-2C in HeLa cells for 24 h followed by siNC or siBIRC3 treatment for 30 h. The results showed that the function of 2Apro to cleavage eIF4G and the expression of 3AB were significantly reduced upon BIRC3 knocking down (Fig. 5). Altogether, these results suggested that BIRC3 might be an important regulator on the cleavage function of EV71 2Apro and the expression of EV71 3AB.

Fig. 5
figure 5

BIRC3 knockdown affected the cleavage function of EV71 2Apro and the expression of EV71 3AB. HeLa cells were transfected with plasmid GFP-2Apro, GFP-2B, GFP-3AB, GFP-3C, GFP-3D and HA-2C for 24 h, then were transfected with siBIRC3 or siNC for 30 h. The cells were harvested and the expression of eIF4G, GFP-tag, HA-tag was evaluated by western blot assay, normalized to β-actin or GAPDH. The intensity of western blot bands signals of cleaved eIF4G, GFP-2B/3AB/3 C/3D, HA-2 C, β-actin and GAPDH were quantified by ImageJ software. Data were pooled from three independent experiments, and were shown as the mean ± SEM (ns, no significant, *P < 0.05, **P < 0.01)

Full size image

6-TG results in EV71 inhibition by attenuating BIRC3-mediated complete autophagy

Recently, the role of BIRC3 in Crohn’s disease, one disease of IBD, in relation to autophagy has attracted our interests [36], due to autophagy supports EV71 replication [19]. The complete autophagy ranges from the autophagosome formation, the autophagosome-lysosome fusion and lysosome-mediated cargoes degradation [37]. Firstly, we observed that the autophagosome marker GFP-LC3 puncta was formed at 12 hpi in EV71-infected HeLa cells (Fig. 6A), as well as the ratio of LC3 II to LC3 I and the degradation of autophagy cargo receptor P62/SQSTM1 (sequestosome 1) was also increased at 12 and 24 hpi in HeLa cells (Fig. 6B), which indicated that EV71 infection induced the complete autophagy. Secondly, we investigated the role of 6-TG in EV71-induced complete autophagy, and observed that 6-TG caused an increase of LC3 II/LC3 I ratio and P62 levels in HeLa cells, which was associated with EV71 inhibition (Fig. 6C). It meant a large number of autophagosomes carrying P62-linked cargoes were stranded, and the complete autophagy was affected. We also found the increased P62 levels and decreased EV71 VP1 levels in 6-TG-treated HT-29 cells (Fig. S3). Furthermore, we found the elevated LC3 II/LC3 I ratio in BIRC3-knockdown HeLa cells, accompanying by a decrease in EV71 VP1 expression (Fig. 6D). Overall, these results suggested that the accumulated autophagosomes induced by 6-TG treatment and BIRC3 shortage damaged EV71 infection.

Fig. 6
figure 6

6-TG suppressed EV71 replication by diminishing BIRC3-mediated autophagy. (A) HeLa cells were Mock-infected or EV71 (MOI = 0.5) infected for 12 h, then cells were fixed for immunostaining using EV71 2C antibody (red). Nuclei were labeled with DAPI (blue). Scale bars, 10 μm. The white arrows showed the formed GFP-LC3 puncta. (B) HeLa cells were infected with EV71 at an MOI of 0.5, and the cells were harvested at 12, 24 hpi (hours post infection). The EV71 VP1, LC3 I, LC3 II and P62 expression was quantified via western blot analysis, normalized against β-actin. The intensity of western blot bands signals of LC3 II/LC3 I and P62/β-actin was quantified by ImageJ software. (C) HeLa cells were infected with EV71 at an MOI of 0.5 in the presence of 1 µM 6-TG. After 24 h, the EV71 VP1, LC3 I, LC3 II and P62 expression was quantified via western blot analysis, normalized against β-actin. The intensity of western blot bands signals of LC3 II/LC3 I and P62/β-actin was quantified by ImageJ software. (D) HeLa cells were transfected with siBIRC3 or siNC for 30 h, then the cells were infected with EV71 at an MOI of 0.5 for 24 h. The BIRC3, LC3 I, LC3 II, P62 and EV71 VP1 expression in harvested cells was quantified via western blot analysis, normalized against β-actin. The intensity of western blot bands signals of LC3 II/LC3 I and P62/β-actin was quantified by ImageJ software. Data were pooled from three (B-D) or two (A) independent experiments, and were shown as the mean ± SEM (ns, no significant, *P < 0.05, **P < 0.01, ***P < 0.001, ****P < 0.0001)

Full size image

Next, we treated HeLa cells with 6-TG treatment alone, and the results showed that 6-TG at 1 or 3 µM increased the LC3 II/LC3 I ratio as well as the P62 levels (Fig. 7A). Moreover, we added 1 µM 6-TG to 100 nM rapamycin (an autophagy activator, inhibits mTOR activity)-pretreated HeLa cells, and also found an increased LC3 II/LC3 I ratio and increased P62 expression following 6-TG treatment (Fig. 7B). We further investigated the relationship between BIRC3 and autophagy in HeLa cells without infection. We found that the LC3 II/LC3 I ratio was increased in BIRC3 overexpressed HeLa cells, the P62 levels was not affected (Fig. 7C). And both the LC3 II/LC3 I ratio and the P62 expression were increased in BIRC3 knockdown HeLa cells (Fig. 7D), which was the same effect as 6-TG treatment on autophagosome accumulation and complete autophagy blockage. These results indicated that 6-TG blocked BIRC3-mediated complete autophagy.

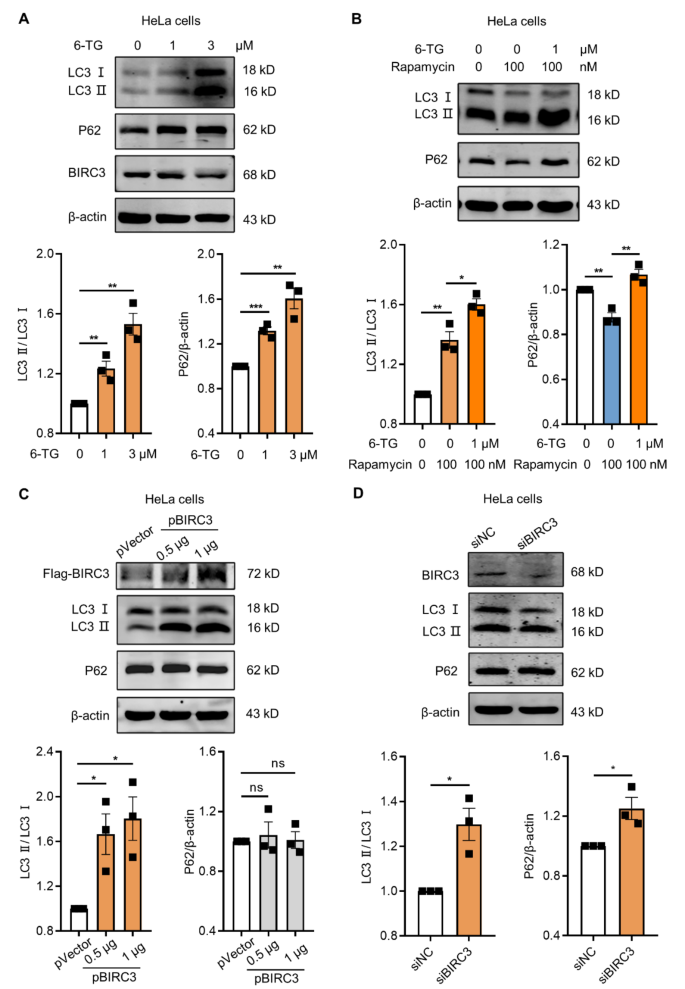

Fig. 7
figure 7

6-TG addition diminished BIRC3-mediated autophagy. (A) HeLa cells were incubated with 1 or 3 µM 6-TG for 24 h, the LC3 I, LC3 II, P62 and BIRC3 expression was quantified via western blot analysis, normalized against β-actin. The intensity of western blot bands signals of LC3 II/LC3 I and P62/β-actin was quantified by ImageJ software. (B) HeLa cells were stimulated with 100 nM rapamycin for 12 h, then they were incubated with 1 µM 6-TG for 24 h. The LC3 I, LC3 II and P62 expression was quantified via western blot analysis, normalized against β-actin. The intensity of western blot bands signals of LC3 II/LC3 I and P62/β-actin was quantified by ImageJ software. (C) HeLa cells were transfected with 0.5–1 µg pBIRC3 or pVector for 30 h. The cells were harvested and Fag-BIRC3, LC3 I, LC3 II and P62 expression was evaluated by western blot assay, normalized to β-actin. The intensity of western blot bands signals of LC3 II/LC3 I and P62/β-actin was quantified by ImageJ software. (D) HeLa cells were transfected with siBIRC3 or siNC for 30 h, respectively. The cells were harvested and BIRC3, LC3 I, LC3 II and P62 expression was evaluated by western blot assay, normalized to β-actin. The intensity of western blot bands signals of LC3 II/LC3 I and P62/β-actin was quantified by ImageJ software. Data were pooled from three (A-D) independent experiments, and were shown as the mean ± SEM (ns, no significant, *P < 0.05, **P < 0.01, ***P < 0.001)

Full size image

Discussion

In this study, we have demonstrated that 6-TG exhibited an activity against EV71 infection. And 6-TG exhibited more potent inhibitory activity against EV71 than ribavirin, requiring less than 1/30 molar concentration of ribavirin to reach IC50. 6-TG could completely inhibit EV71 replication at about 3 µM in vitro, which was in contrast to ribavirin that failed to completely inhibit or abrogate clinical manifestation of EV71 [38].

EV71 has developed strategies to hijack the complete autophagy including autophagosome production, autophagosome fusion with lysosomes and followed degradation to help viral replication and maturation [20, 39]. In this study, we found that 6-TG addition with or without EV71 infection increased cellular LC3 II/LC3 I ratio and autophagy cargo receptor P62 levels, and this accumulated autophagosomes and blocked complete autophagy flux damaged EV71 infection. Previous studies reported that knocking down the proteins involved in the fusion between autophagosomes and lysosomes, such as STX17 and SNAP29, or blocking autolysosomal acidification by knocking down the associated protein ATP6AP2, inhibited EV71 infection [40, 41]. In our study, we found that knocking down BIRC3, the anti-EV71 target of 6-TG explored here, significantly reduced EV71 replication by inducing autophagosome accumulation and complete autophagy blockage. Since BIRC3 was required for effective fusion of autophagosomes with lysosomes [36], the failure of autophagosome and lysosome fusion and blocked complete autophagy due to the lack of BIRC3 may mediate the antiviral effect of 6-TG. We also found that overexpression of BIRC3 promoted the increased LC3 II/LC3 I ratio but no change in P62, suggesting that the role of BIRC3 on promoting the fusion of autophagosomes with lysosomes may not be effective in the absence of viral infection due to the over-activated autophagy is harmful to maintain cellular homeostasis [42].

However, the mechanism of 6-TG regulation of BIRC3 expression has not been fully elucidated in our study. 6-TG was reported to down-regulate DNA methyltransferase 1 (DNMT1)-mediated DNA methylation to activate apoptosis-modulating protein (DAXX) [43], and activated DAXX acted as a transcriptional repressor repressing transcription factor NF-κB member (RelB), resulting in decreased mRNA levels of targeted gene BIRC3 [44]. Thus, the decrease in BIRC3 mRNA levels after 6-TG treatment may be related to reduced DNMT1. 6-TG has also been reported to facilitate the proteasome-mediated degradation of DNMT1 in leukemic cells [45], thus, the role of the ubiquitin proteasome system in the 6-TG-induced reduction of BIRC3 protein could be a possible mechanism.

Enterovirus including EV71 usually use autophagosome maturation to serve as the site of genome replication, and several membrane-associated viral proteins interact with the replication organelle [46]. Inhibition of acidification of the autophagy-induced membranous compartment not only suppressed viral infection, but also destabilized viral proteins, which may be due to the altered protein association with membranes and then leading to their degradation in the cytoplasm [47]. In our study, we found that BIRC3 knockdown declined the cleavage function of EV71 2Apro and expression of EV71 3AB. EV71 2Apro is a cysteine protease responsible for cleaving of the open reading frame of EV71 (which can be categorized into three regions, P1, P2 and P3) into the P1 and P2 precursor polyproteins. EV71 3AB, derived from the P3 precursor polyproteins of EV71, contains N-terminal 3A and C-terminal 3B/VPg domains and will be proteolytically cleaved into proteins 3A and 3B/VPg. 3A, 3B/VPg as well as 3AB play critical roles in EV71 RNA synthesis, and 3A has an effect on protein trafficking while 3B/VPg functions as a primer to initiate RNA synthesis by EV71 3D [48]. EV71 3A also reported to increase viral replication and growth by upregulating autophagy degradation-related protein LRRC25 [49, 50]. Thus, BIRC3 knockdown resulted in the accumulated autophagosomes and autophagy cargoes-linked P62 may not provide the acidified replication environments to destabilize EV71 2Apro and 3AB, resulting EV71 inhibition.

Conclusions

Our present work demonstrated that 6-TG had a significant antiviral activity against EV71, and the antiviral activity was likely based on suppressing the host protein BIRC3-mediated the complete autophagy. And due to its good in vitro safety profile and high SI value than ribavirin, 6-TG is a potential therapeutic candidate for the further study for EV71-induced HFMD.

Data availability

The datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.

Abbreviations

6-TG:

6-thioguanine

EV71:

Enterovirus 71

BIRC3:

Baculoviral IAP repeat containing 3

HFMD:

Hand, foot, and mouth disease

CC50 :

50% cytotoxicity concentration of compounds

IC50 :

50% inhibitory concentration of compounds against virus

SI:

Selectivity index

FDA:

US Food and Drug Administration

IBD:

Inflammatory bowel disease

SARS-COV-2:

Severe acute respiratory syndrome coronavirus 2

SFTSV:

Severe fever with thrombocytopenia syndrome virus

HSV-1:

Herpes simples virus 1

hpi:

Hours post infection

Rac1:

Ras-related C3 botulinum toxin substrate 1

2Apro :

2A protease

LC3/MAP1LC3B:

Microtubule associated protein 1 light chain 3 beta
